BHS Sampler

Apex offers a range of downhole sampling tools and supporting equipment to capture fluid samples from within the well bore. This equipment can be used to capture reservoir samples during exploration or production stages and can also be used to help sample storage vessels during decommissioning of platforms and tanks. Bottom-hole sampling tools are available in standard or exotic materials for use in harsh environments and can also be supplied with non-reactive coatings if required.

Positive displacement sampler (P.D.S) – allows for the capture of down-hole reservoir fluid samples. The single-phase sampler (SPS) maintains the samples at a pressure above reservoir conditions, for analysis back at the laboratory. Sampler conveyance is run on slickline, wireline, coil tubing, or pipe and is operated via traditional mechanical clock or third-party acoustic triggers when run as part of a drill stem test string.

Micro-field transfer bench – compatible with the down-hole sampler and transportation cylinder is the micro-field transfer bench (MFTB) that allows samples to be transferred safely from the sampler to cylinder for transportation to the PVT lab for analysis. In addition to ensuring the sample is monophasic and homogeneous prior to transfer, the MFTB allows a validation to be carried out after the transfer to ascertain a bubble point, and comparison between samples.

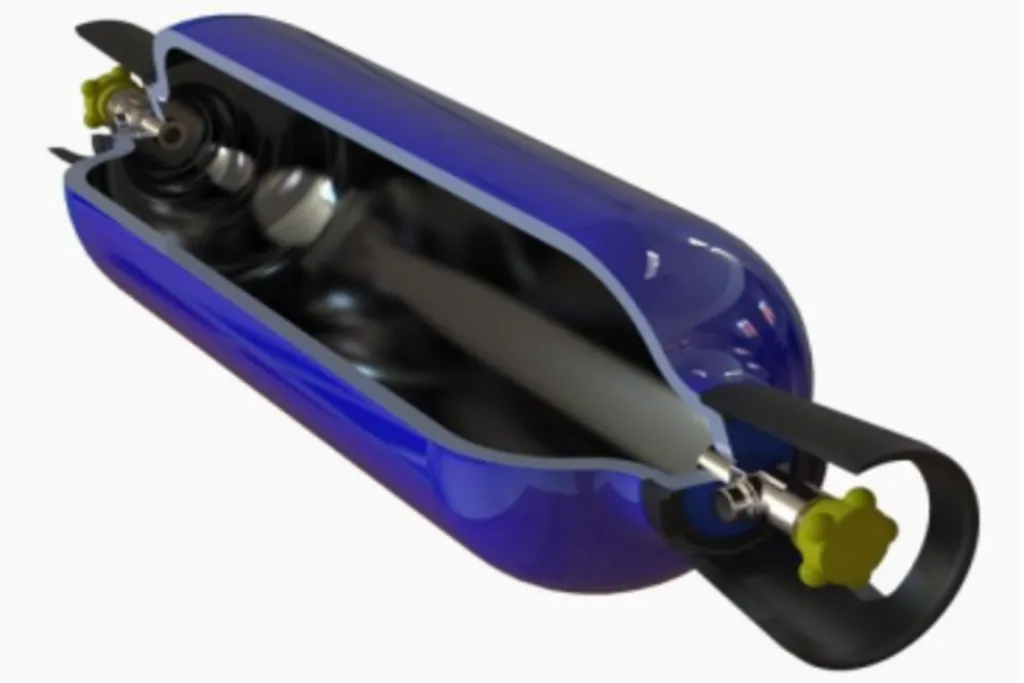

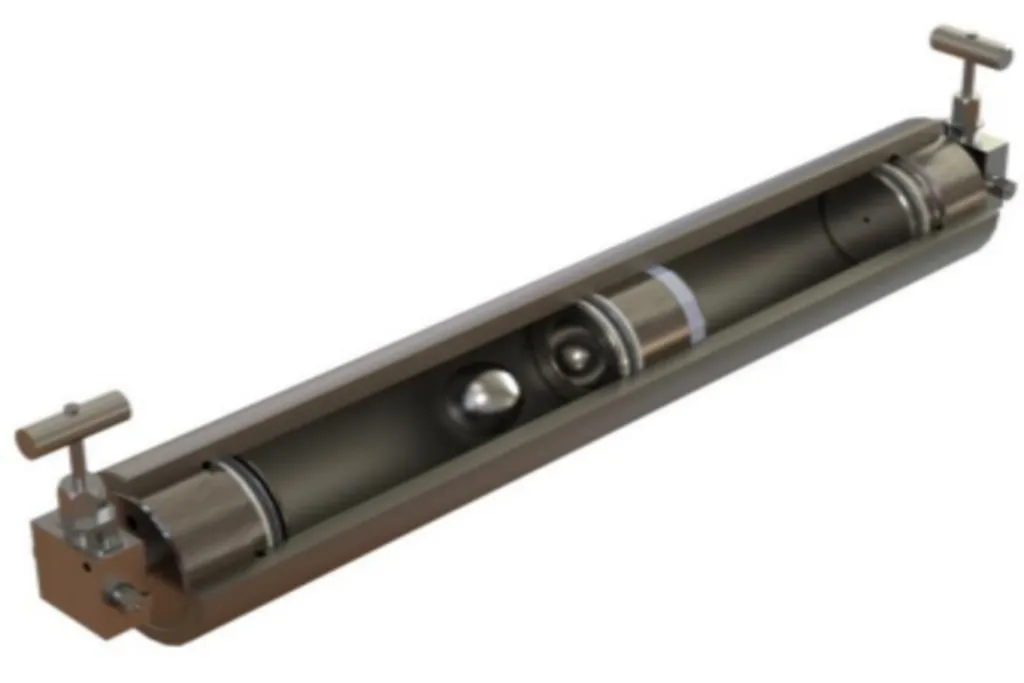

Cylinders – for the transportation of samples, a range of cylinders (700 millilitres as standard) can be supplied with pressure ratings of 10,000 and 15,000 psi. Our cylinders are supplied with transportation boxes for shipment complete with European PED, TPED, United States DOT, Canadian TC, Australian A*S certification, where applicable.
