Catalog · 44 equipment lines
Products & services
Browse 44 equipment lines across 13 integrated well testing and production categories.
Showing 44 products
01
Well Testing & Commissioning
Surface well testing, commissioning, safety systems, and field data acquisition.
11 products

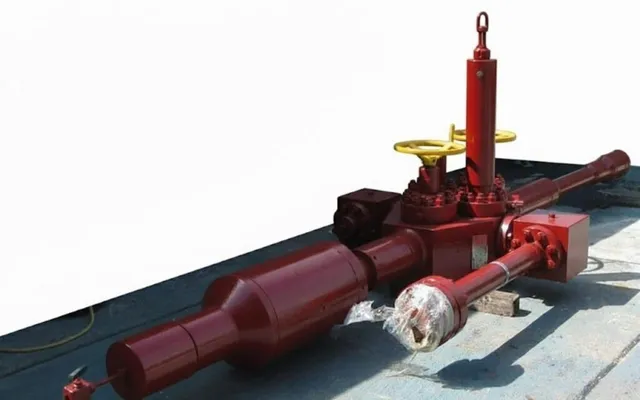

Surface Test Tree
The Surface Test Tree (STT), also known as the Flowhead, is located directly on top of the well and serves as the first piece of equipment that well fluid passes through. Its primary function is to control the flow of fluid into and out of the well.
View product

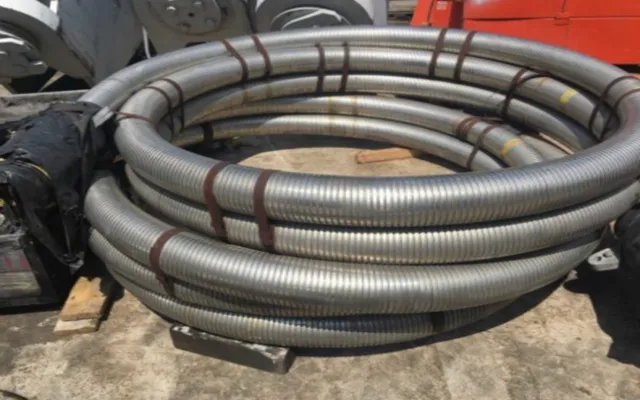

Coflexip Hose (Flexible Armored)
The Apex Petroleum Services Flexible Armored Hose is generally used for 5000, 10,000 psi, and 15,000 psi applications to replace hard piping where any expansion in the work string and movement may occur.
View product

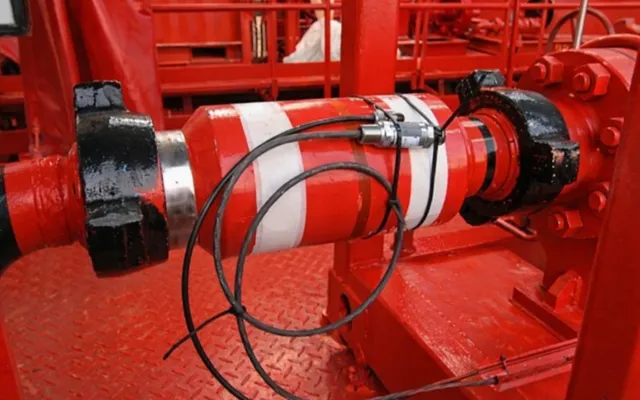

Data Header
The Data Header is a piping component with several ports along or around its length that provide access to the flow stream for sampling, monitoring of pressure and temperature, sand/silt monitoring, and chemical injection.
View product

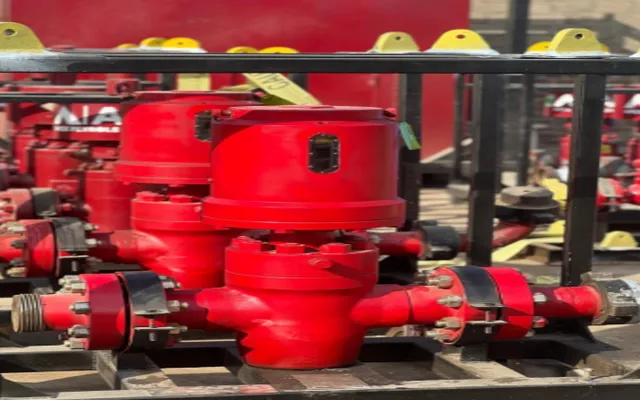

Surface Safety Valve
Inline Surface Safety Valves are installed upstream of the choke manifold to provide quick response valve closure, isolating the system in case of line or vessel rupture.
View product

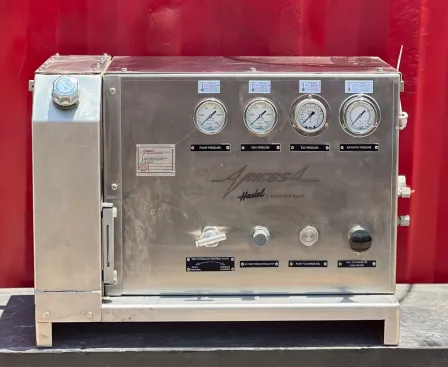

ESD Panel
Apex Petroleum Services uses Hydraulic Control Panels to operate the hydraulic actuators fitted to the surface test tree and surface safety valve.
View product

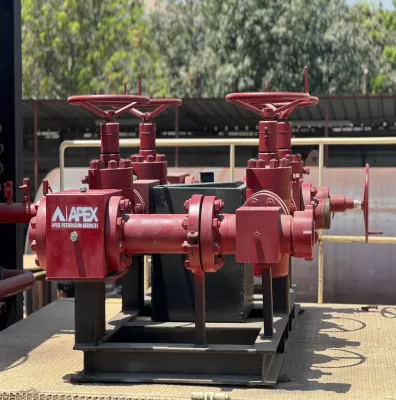

Choke Manifold
Chokes are throttling valves that allow operators to control the wellstream. They are capable of withstanding erosion resulting from the very high velocities occurring at and immediately downstream from the orifice.
View product

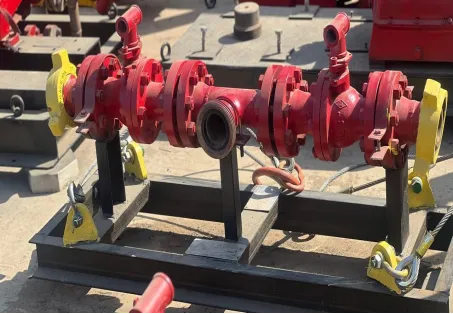

Diverter
Diverter Manifolds are used to redirect the well fluids/ gases produced during well testing operations. Gas and oil diverters of this type are comprised of five basic elements.
View product

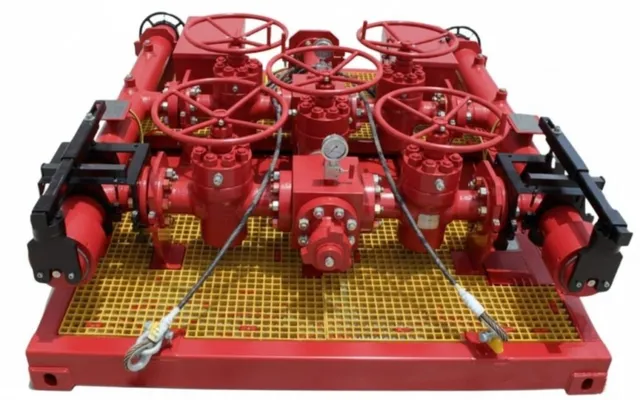

Debris Catcher
APEX’s debris catcher manifold is engineered to effectively remove drilling solids, formation particles, and proppant-based debris from wellbore fluids during well testing operations. Designed with operational efficiency and equipment protection in mind, the system safeguards downstream pressure control and measurement equipment from potential damage caused by debris-laden flow.
View product

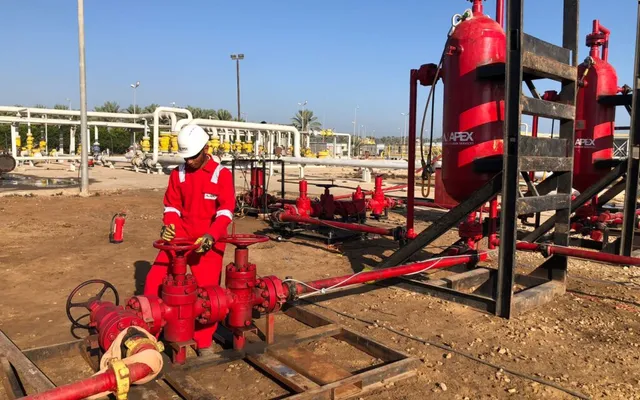

Wellhead Desander
The Apex Petroleum Services Wellhead desander is designed to remove sands and solids present in well effluent. Wellhead desander is the first sand management equipment on the surface where gases and fluids come into contact with surface equipment after X-mass Trees.
View product
DAQ System
Apex uses the Smart Hybrid logger, the most advanced and innovative data acquisition logger on the market, combining the best of both worlds: wired and wireless. Smart Hybrid can read analog transmitters, digital transmitters, Coriolis meters, water cut meters, wet gas meters, multiphase meters, flow meters, and more.
View product

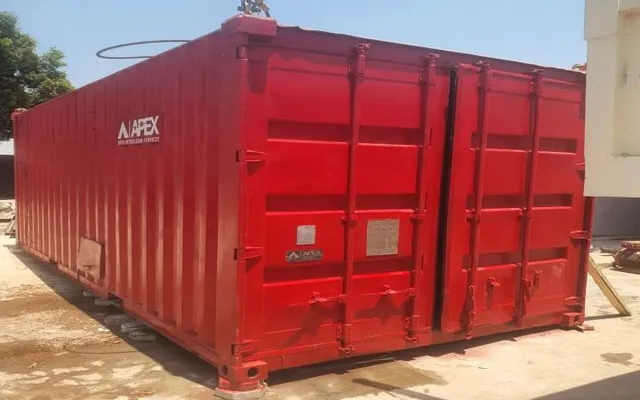

Well Test Laboratory
Our Safe Area Portable Well Test Laboratory is purpose-built for accurate data acquisition and well production analysis in non-hazardous environments. 7-1 standards, ensuring safety, mobility, and operational efficiency.
View product
02
Production Systems
Separators, storage, heating, and early production systems for reliable operations.
15 products

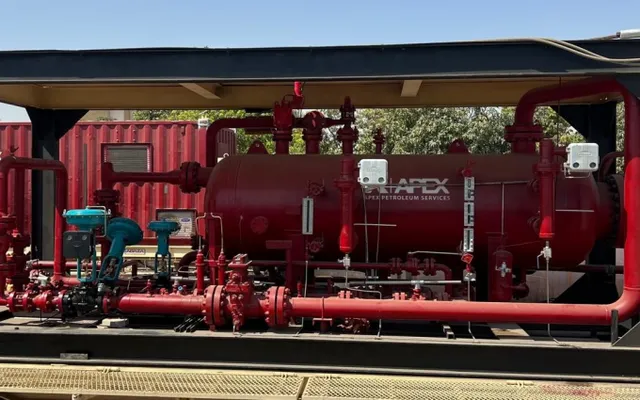

Horizontal Test Separator
The Apex Petroleum Services three-phase horizontal well testing separator is designed to separate and measure the gas, oil, and water produced from a well. This separator can be used in well testing and to clean up new completions or stimulated wells.
View product

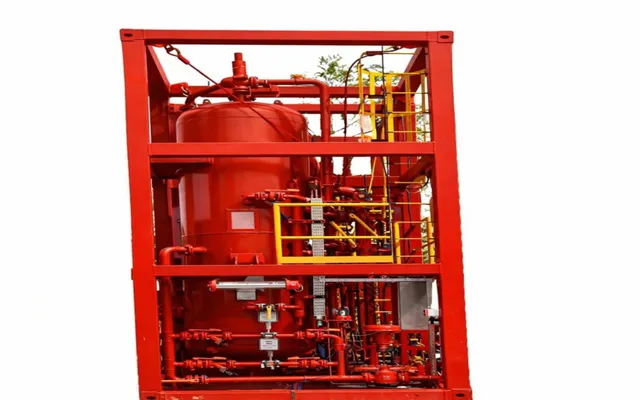

Vertical Separator
The Apex Vertical Separator is engineered for high-performance separation of liquids from produced gas, particularly suited for wells with low to moderate liquid content. Its compact and lightweight design makes it ideal for operations where space, mobility, and efficiency are key.
View product

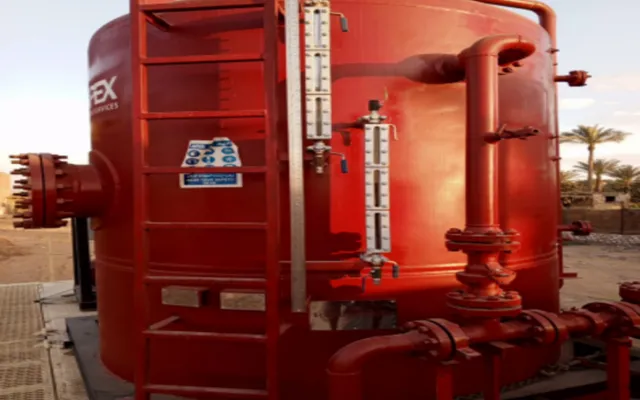

Surge Tank
The Apex Pressurized Test Tank is used to store produced liquids before they are disposed. It can also be used as an additional stage of separation.
View product

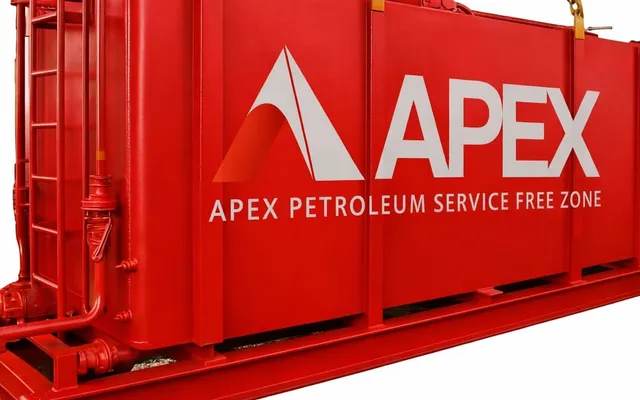

Atmospheric Tank
The atmospheric tank is used to store produced liquids before disposal. Atmospheric tanks are manufactured for various volumes and are available as single or twin compartments.
View product

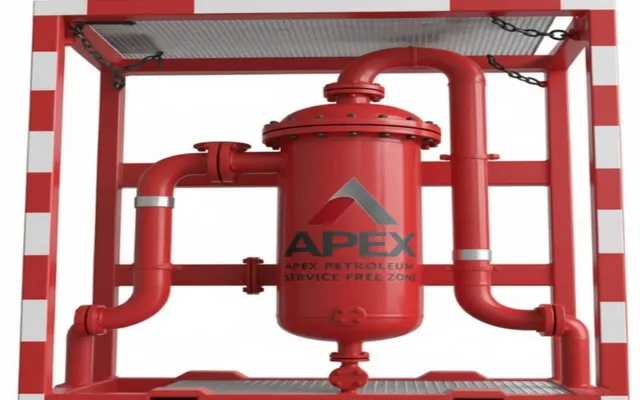

Knock Out Pot
The Apex Knock Out Pot is engineered to effectively remove entrained liquid droplets from gas streams. Typically installed downstream of separators or on the vent lines of test tanks, this unit ensures the reliable capture of liquid carryover, safeguarding downstream equipment and enhancing process safety.
View product

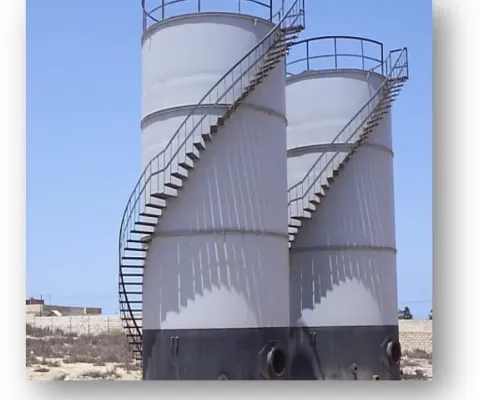

500 & 1000 bbl Oil Storage Tank
The tank is designed to allow easy access for multiple valves forming the inlet and outlet manifold. This optimizes use of the tank for clean-up operations or to store liquids.
View product
Early Production Facility
An Early Production Facility (EPF) is a modularized integrated solution for oil and gas production that enables customers to start oil/gas production on a fast-track basis.
View product

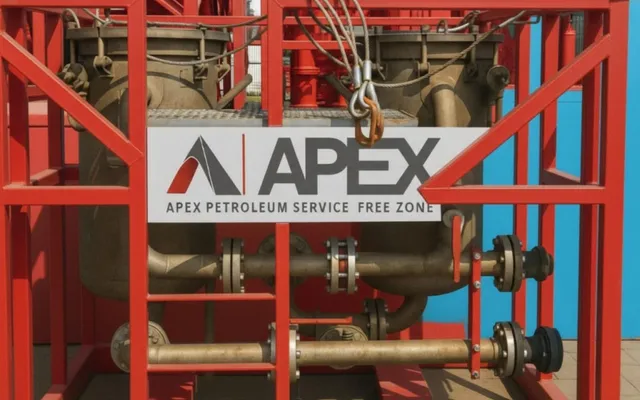

Produced Water Treatment
APEX’s advanced produced water treatment system is designed to efficiently remove oil from produced water during development well testing and clean-up operations. Water produced in these phases often contains stable oily emulsions that require effective treatment prior to safe environmental discharge.
View product

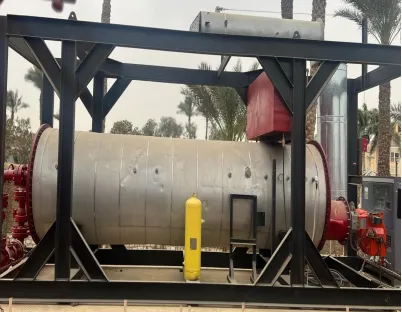

Indirect Fired Heater
Water Bath Heaters are designed to heat high-pressure fluids and gas coming from the well or pipeline. Water bath heaters (water jacket furnace) are used in the oil and gas industry for heating the medium of the pipeline to prepare for further technological needs.
View product

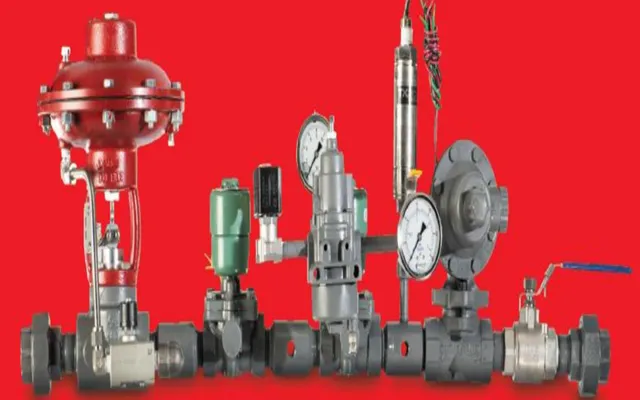

Indirect-Gas Fired Heater
The Apex Indirect Gas Fired Heater is engineered for safe, efficient, and reliable performance in onshore and offshore oil & gas operations. It features the HBB Inline Fuel Train & PF2100 BMS (Burner Management System).
View product

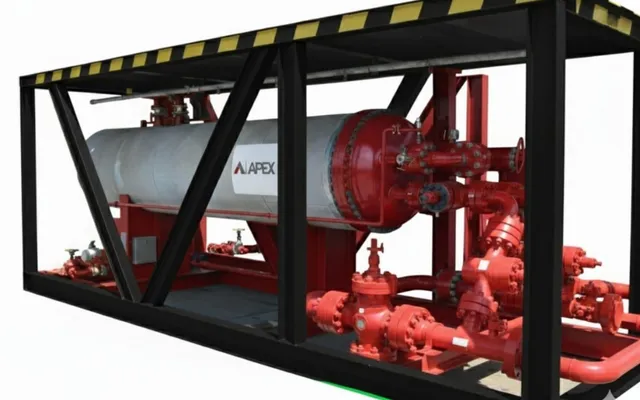

Steam Heat Exchanger
A steam heat exchanger consists of a pressurized tank (usually 150 or 350 psi) that contains a set of process coils. The steam heat exchanger is considered to be the preferred unit for offshore use.
View product

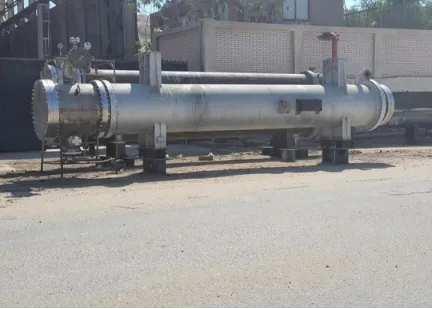

Apex Multitube Steam Heat Exchanger
The Shell and Tube heat exchanger is a non-fired pressure system consisting of two separate pressure chambers (shell chamber and tube chamber). Separated by the internal tube wall, two media flow past one another with such alignment that, if there is a temperature difference, they will mutually exchange heat without mixing in the process.
View product

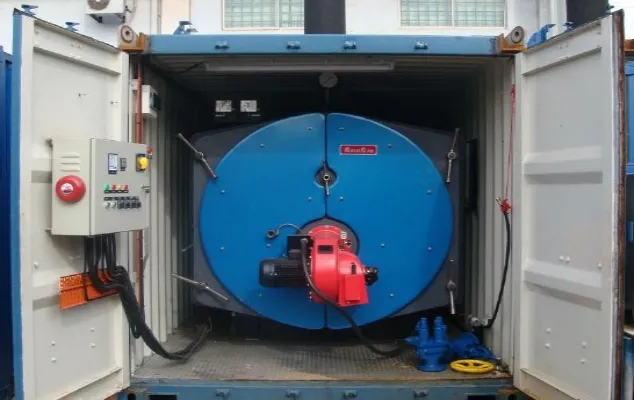

Steam Generator
The steam is used to heat the process fluid to raise fluid temperature, aid separation, and prevent the formation of hydrates. The process fluid is passed through coils or tubes, and the steam is passed around the outer surface of the coils or tubes.
View product

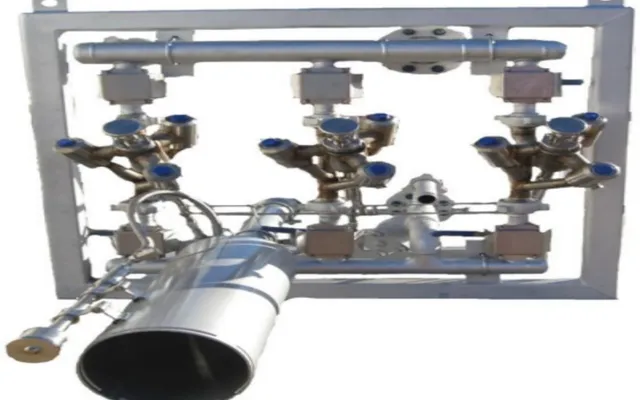

Burner Head
The Apex’s FlareMax Burner is designed for maximum clean burn capability with minimal fall-out. The oil path through the burner is via a 2″ mixing chamber which also allows the passage of solids without causing blockages and subsequent performance problems.
View product

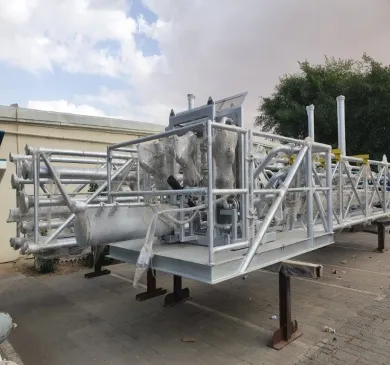

U-Shaped Burner
Booms are used to extend the crude oil burner and gas flare a set distance from an installation to allow the produced hydrocarbons to be flared safely and move the radiated heat away from the installation.
View product
03
DST & TCP
Downhole testing and completion support for better reservoir and production decisions.
0 products
No products match the current filters.
04
Sand Exclusion Services
Equipment and field services that control sand production and protect surface facilities.
1 products
05
Single Phase & MPFM Services
Accurate, non-intrusive and multiphase flow measurement for production insight.
3 products

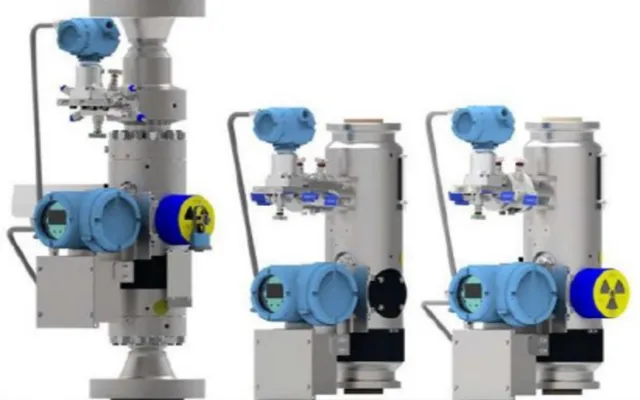

MPFM-Roxar 2600
The Roxar Multiphase Flow Meter (MPFM) is an extremely robust, reliable, field-proven measurement instrument. The compact, inline meter provides high-quality rates of oil, water, and gas in upstream multiphase flow lines, from the easiest to most challenging applications.
View product

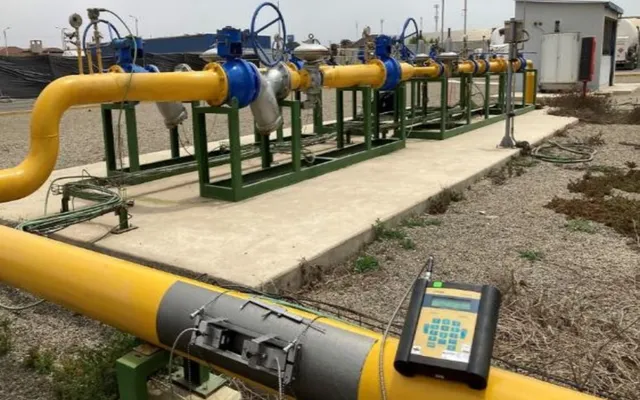

Clamp-on Ultrasonic Flow Meters
Apex’s Metering Solutions offers a comprehensive suite of technologies for single-phase and multiphase flow applications. This provides customers with data that assists in evaluating production performance, efficient management of reserves, production optimization, and prioritizing well interventions.
View product

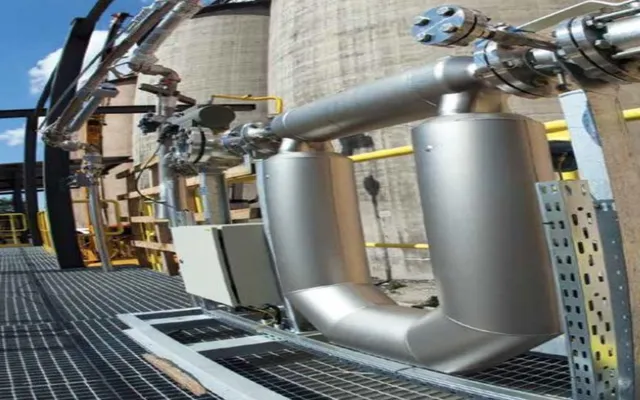

Coriolis Flow Meters
These systems provide high-accuracy flow data verification across a wide range of applications.
View product
06

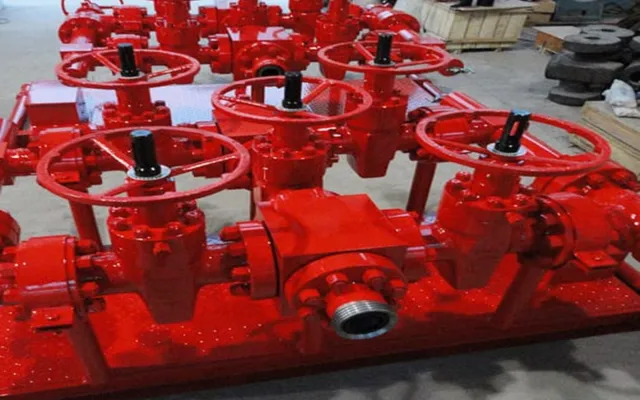

Frac Flow Back & Well Clean-up
Safe flow-back, cleanup, and solids management from stimulation to production.
1 products
07
Surface Pumping Services
Reliable pumping packages for chemical injection, transfer, and wellsite support.
2 products

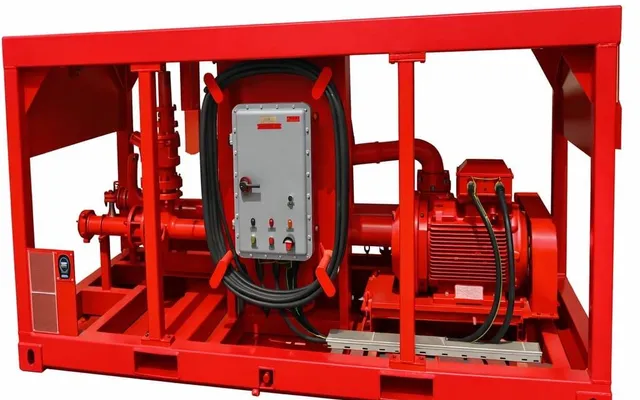

Centrifugal Pump
Transfer pumps are used to transfer crude oil from the test tanks to a pipeline or storage tank, or to supply oil to a crude oil burner for disposal. These pumps may be driven electrically or by diesel or gas engines.
View product
Chemical Injection Pump
The pumps can be skid mounted with control valving, reservoir, hose reels etc. The chemicals are used to prevent hydrates, cure foaming problems, treat the fluid to reduce the H2S content, reduce wax build-up, reduce surface tension of the Well fluid etc.
View product
08
Fluids & Sampling Services
Representative fluid sampling, bottles, and laboratory support for field decisions.
4 products

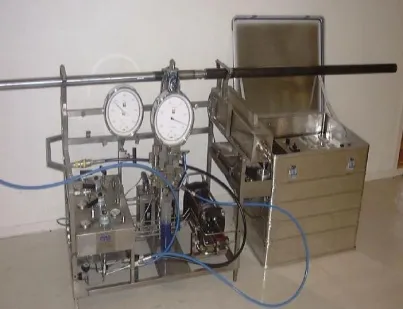

BHS Sampler
Apex offers a range of downhole sampling tools and supporting equipment to capture fluid samples from within the well bore. This equipment can be used to capture reservoir samples during exploration or production stages and can also be used to help sample storage vessels during decommissioning of platforms and tanks.
View product
Gas Sample Bottles
Proserv’s unique double-ended 20 Ltr Aluminium gas cylinder is the sampling industry standard where large volume surface separator gas samples are required during well testing. The cylinder is suitable for use in any ambient condition to be expected outdoors, subject to the specified temperature limitations, including offshore platforms, onshore terminals, and sites in tropical areas.
View product
Oil Sample Bottles (Titanium)
The Prolight Sample CylinderThe Prolight Sample Cylinder is designed for the collection of hydrocarbon Liquid & Gas Group 1 samples requiring analysis in the Laboratory & subsequent storage. Threaded end caps inclusive of O-ring & Back-up ring sealing arrangement at either end of the cylinder creates a robust & reliable design which is field proven.
View product

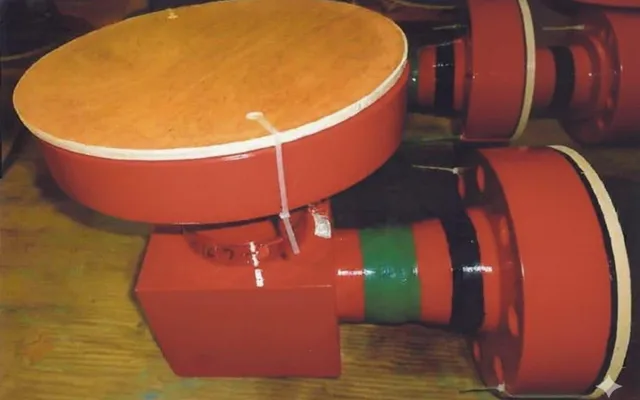

Target Block
Target Block for oilfield operations.
View product
09

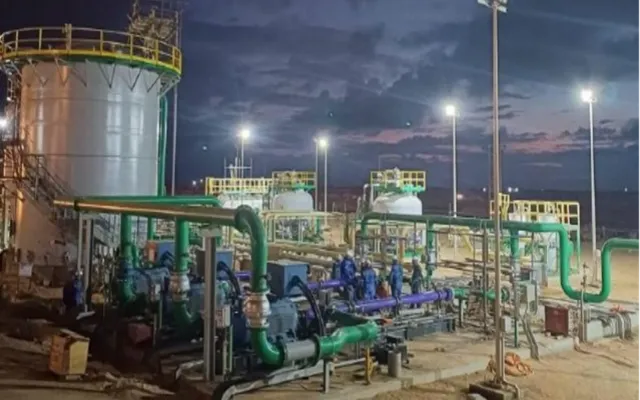

Saltwater Filtration & Treatment
Produced-water and saltwater treatment for compliant disposal and reuse.
1 products
10

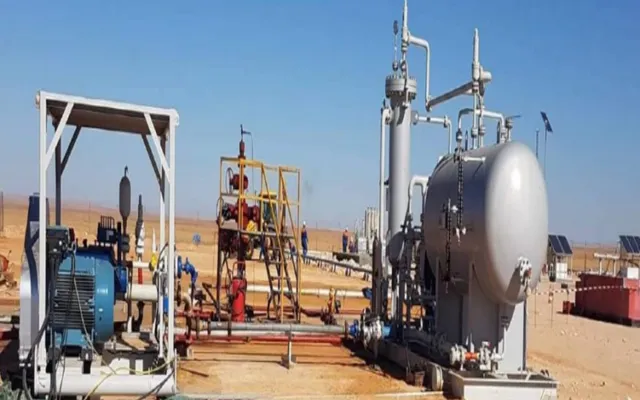

Artificial Lift Solutions
Practical lift technologies that help operators sustain production performance.
1 products
11

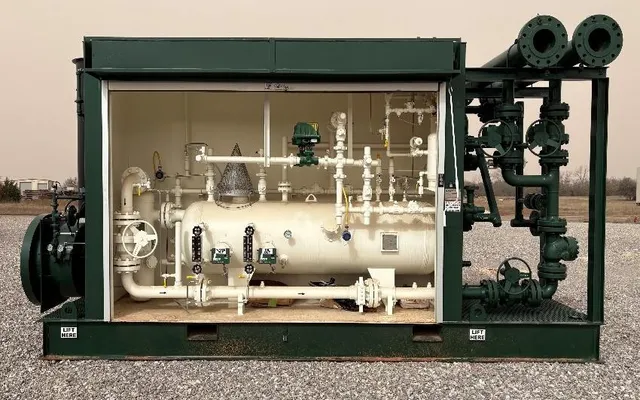

Gas Production Unit (GPU)
Integrated gas handling and production packages built for demanding field conditions.
1 products
12
Technology & Innovation
Applied technology, digital monitoring, and engineered solutions for better operations.
3 products

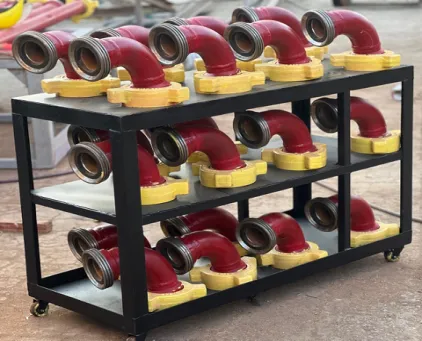

Piping
Piping systems transport well effluent to and between the well, and various process components of the well test package.
View product

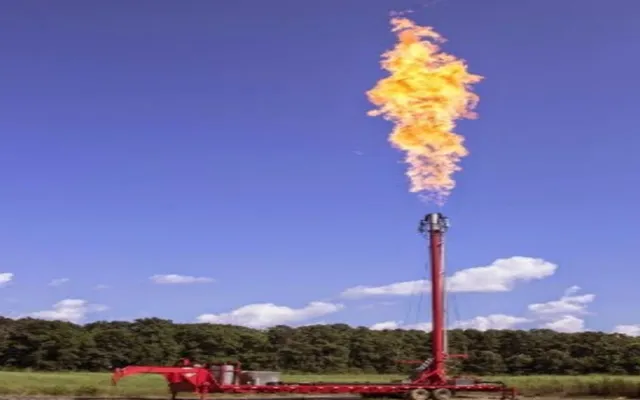

Flare Stack
Flare gas stacks, also known as flue gas stacks or exhaust stacks, are tall, cylindrical structures used to discharge waste gases from industrial processes into the atmosphere. In surface well testing, gas flaring is conducted by 40 ft, 60 ft, or 90 ft flare stacks.
View product

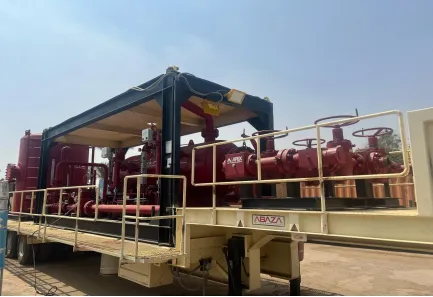

Apex Petroleum TMU
Apex Petroleum has designed a number of trailer-mounted packages for use on land. The trailers come equipped with the essentials needed for a well test operation, including the choke manifold, heater, separator, tank with associated metering, and pipework.
View product
13
ASME Manufacturing Facility
In-house fabrication and pressure-vessel manufacturing under ASME standards.
1 products
