Produced Water Treatment

APEX’s advanced produced water treatment system is designed to efficiently remove oil from produced water during development well testing and clean-up operations. Water produced in these phases often contains stable oily emulsions that require effective treatment prior to safe environmental discharge.

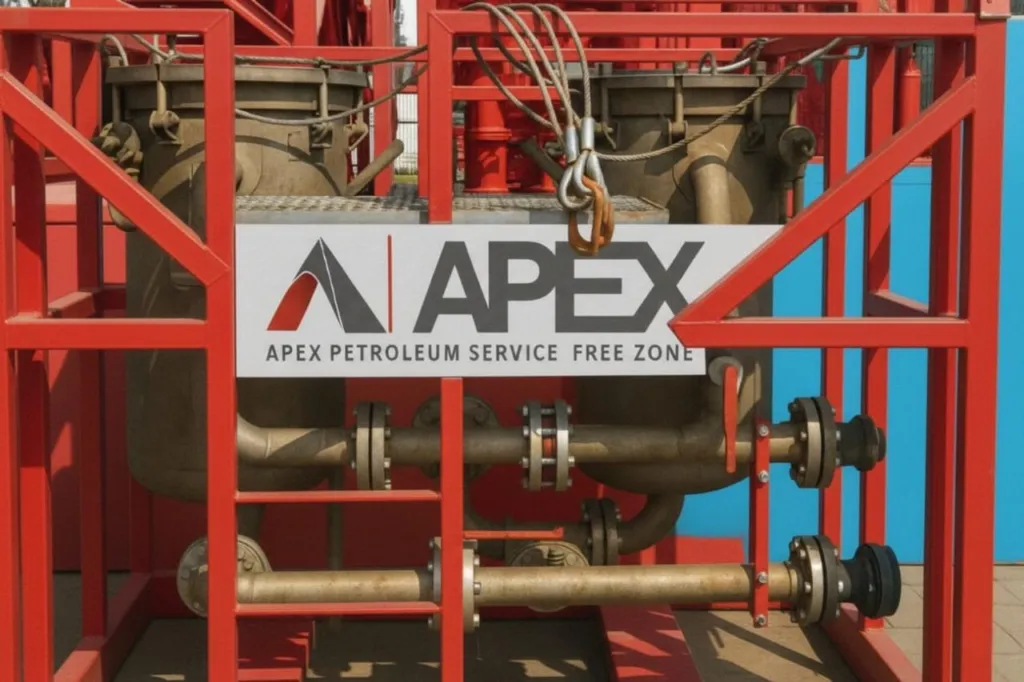

Our system utilizes compact, skid-mounted vessels equipped with high-performance oil adsorption filter cartridges. These cartridges are engineered to handle a broad spectrum of process contaminants and can be arranged for either parallel or series operation based on the clean-up requirements.

Each vessel is capable of removing up to 72 kg of oil with a separation efficiency of 90–95%, achieving oil-in-water concentrations as low as 5 mg/l. The system’s performance is continuously monitored using an industry-leading oil content analyzer to ensure compliance and operational efficiency.

Note: Designed and manufactured to ASME VIII Div 1, ANSI B31.3, NACE MR-01-75, SI 289, SI 913, EN 12079, BS 449. Other sizes and configurations are available to meet most applications. For more information, contact your local Apex Petroleum Services representative.
