The Data Header is a piping component with several ports along or around its length that provide access to the flow stream for sampling, monitoring of pressure and temperature, sand/silt monitoring, and chemical injection.
The Data Header is a piping component with several ports along or around its length that provide access to the flow stream for sampling, monitoring of pressure and temperature, sand/silt monitoring, and chemical injection.
It is usually mounted in the production flow path upstream and downstream of the surface choke manifold.
Features and Benefits:
OperationThe data header is normally mounted in the production flow path upstream of the surface choke manifold. The data header is designed with lateral fittings providing access to monitor the flow as it leaves the wellhead.
OperationThe data header is normally mounted in the production flow path upstream of the surface choke manifold. The data header is designed with lateral fittings providing access to monitor the flow as it leaves the wellhead.
Meets requirements of NACE MR0175.Transportation skid included.Other sizes, configurations, and pressure ratings are available to meet most applications.These ratings are guidelines only. For more information, contact your local Apex Petroleum Services representative.
Specifications
Scroll horizontally to view the complete table
| Size | Working Pressure (psi) | End Connection | Length (in) | Weight (lb) |
|---|---|---|---|---|
| 2 | 10,000 | Fig 1502 Hammer Union (Wing and Thread) | 0 | 25 |
| 2 | 15,000 | Fig 2202 Hammer Union (Wing and Thread) | 4 | |
| 3 | 10,000 | Fig 1502 Hammer Union (Wing and Thread) | 30 | 00 |
| 3 | 15,000 | API 6A, Bx 154 Flange | 25 |
Related products
Surface Test Tree
The Surface Test Tree (STT), also known as the Flowhead, is located directly on top of the well and serves as the first piece of equipment that well fluid passes through. Its primary function is to control the flow of fluid into and out of the well.
Coflexip Hose (Flexible Armored)
The Apex Petroleum Services Flexible Armored Hose is generally used for 5000, 10,000 psi, and 15,000 psi applications to replace hard piping where any expansion in the work string and movement may occur.

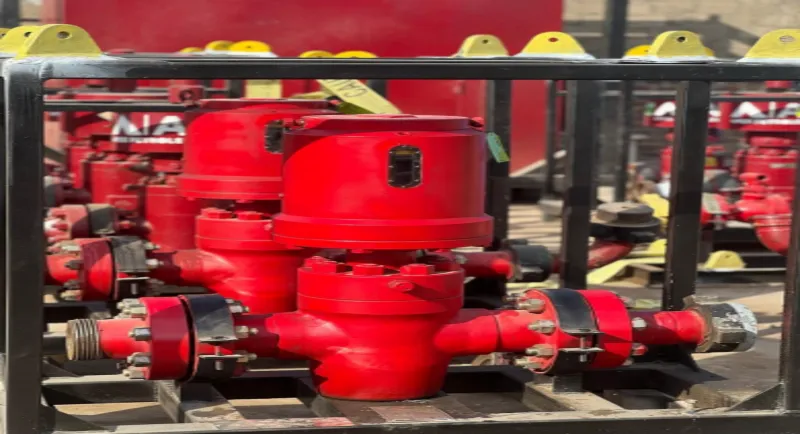

Surface Safety Valve
