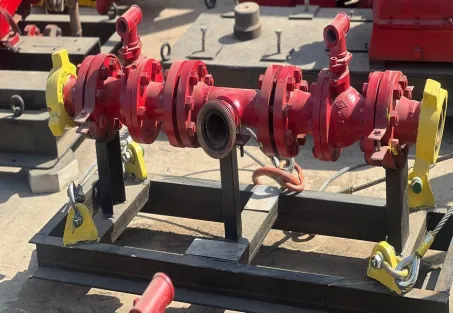

Diverter Manifolds are used to redirect the well fluids/ gases produced during well testing operations. Gas and oil diverters of this type are comprised of five basic elements.
Diverter Manifolds are used to redirect the well fluids/ gases produced during well testing operations. They are used to divert gas flow from equipment to flare booms, oil from equipment to burner heads, air from compressors to burner heads, etc.Gas and oil diverters of this type are comprised of five basic elements. Firstly, the inlet tee, secondly, a pair of ball valves, and finally, two outlet flange adapters for reconnection to the process pipework.When used in conjunction with Apex Petroleum Services process piping packages, these units provide selective line choice with minimum restrictions.
Meets requirements of NACE MR0175. Temperature rating °F: (-20 to 250) or (-20 to 350)Designed and manufactured to ANSI B31.3 and NACE MR-10-75 (H2S) for all diverters. Units rated at 5,000 psi also comply with API 6A.Transportation skid included.Other sizes, configurations, and pressure ratings are available to meet most applications.These ratings are guidelines only. For more information, contact your local Apex Petroleum Services representative.
Key features
- Use of multiple units allows flexibility in the system
- Units can be built into skids for ease of transportation and handling
- Available in various sizes and configurations
Specifications
Scroll horizontally to view the complete table
| Description | Connections | Pressure Rating (psi) | Valves |
|---|---|---|---|
| 5 Valve Oil Diverter Manifold | Inlet: 3” Fig 206 Hammer Union ThreadOutlets: 3” Fig 206 Hammer Union Wing | 1440 | 3” 600 Fl, manual, lever operated Balon |
| 2 Valve Oil/GAS Diverter Manifold | Inlet: 3” Fig 602 Hammer Union ThreadOutlets: 3” Fig 602 Hammer Union Wing | 1440 | 3” 600 Fl, manual, lever operated Balon |
| 2 Valve Oil/GAS Diverter Manifold | Inlet: 4” Fig 206 Hammer Union ThreadOutlets: 4” Fig 206 Hammer Union Wing | 1440 | 4” 600 Fl, manual, gear operated Balon |
| 2 Valve Oil/GAS Diverter Manifold | Inlet: 4” Fig 602 Hammer Union ThreadOutlets: 4” Fig 602 Hammer Union Wing | 2000 | 4”900 Fl, manual, gear operated Balon |
| 2 Valve Oil/GAS Diverter Manifold | Inlet: 3” Fig 1502 Hammer Union ThreadOutlets: 3” Fig 1502 Hammer Union Wing | 5000 | 3-1/8″ 5000 gate valve |
