Well Testing & Commissioning

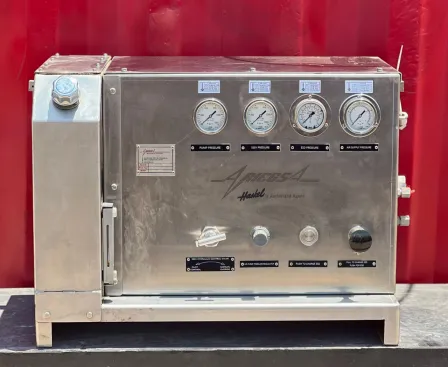

ESD Panel
Apex Petroleum Services uses Hydraulic Control Panels to operate the hydraulic actuators fitted to the surface test tree and surface safety valve.
Apex Petroleum Services uses Hydraulic Control Panels to operate the hydraulic actuators fitted to the surface test tree and surface safety valve.
The Apex Petroleum Services range of hydraulic control panels is designed to provide the hydraulic pressure required to hold open various types and makes of actuated valves. These panels also supply pneumatic control line pressure to the Emergency Shutdown (ESD) system.
An ESD is triggered by:
Each panel contains an emergency shut-in button and provides provisions for an unlimited number of remote buttons, as well as Hi-Lo pressure shutdown pilots.
Override Facility to allow valves to be maintained in the open position during pressure testing, etc.
Key features
- Manual or Air Supply Operation of the pump.
- Single Action Fail-Safe System for enhanced safety.
- Ports for Optional Pilots to accommodate additional needs.
- Hydraulic Reservoir for system fluid storage.
